CRERCC Mt Matheson - VE7RWS

(callsign VE7RYF as of  - 2015)

145.430 - with 100.0 Hz tone

(BCARCC coordinated)



K-Net node stack

440.125 VE7LK-6

145.690 VE7LK-7

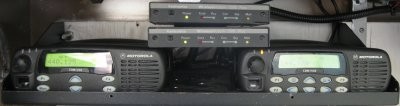

 Kantronics TNC and Motorola CDM's

Swiftsure Ch 26 Marine repeater (IC Approved for the race only)



 Note: the anchour points just hooked over the corners of the reinforced roof slab

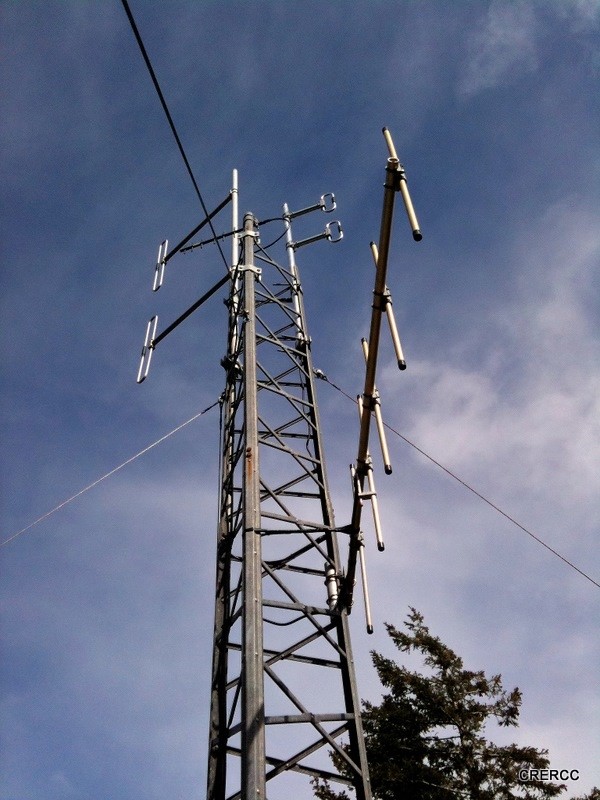

 Sinclair VHF 210-C2 and UHF 310-C2

Marine (Swiftsure) 5 element Yagi pointed to Neah bay

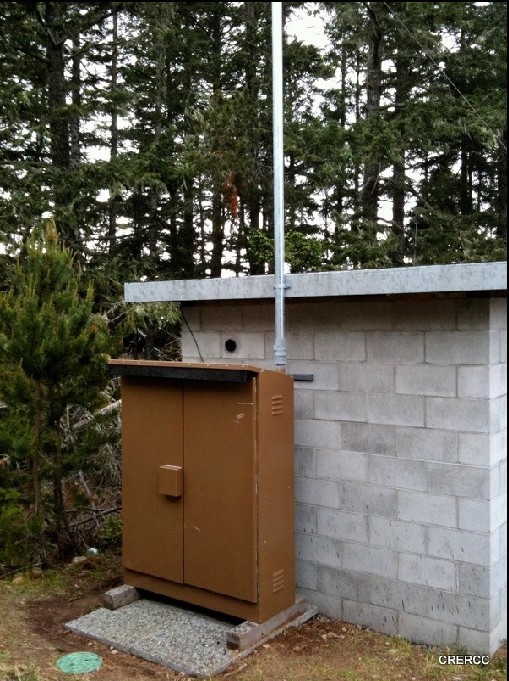

 Repeater Kiosk

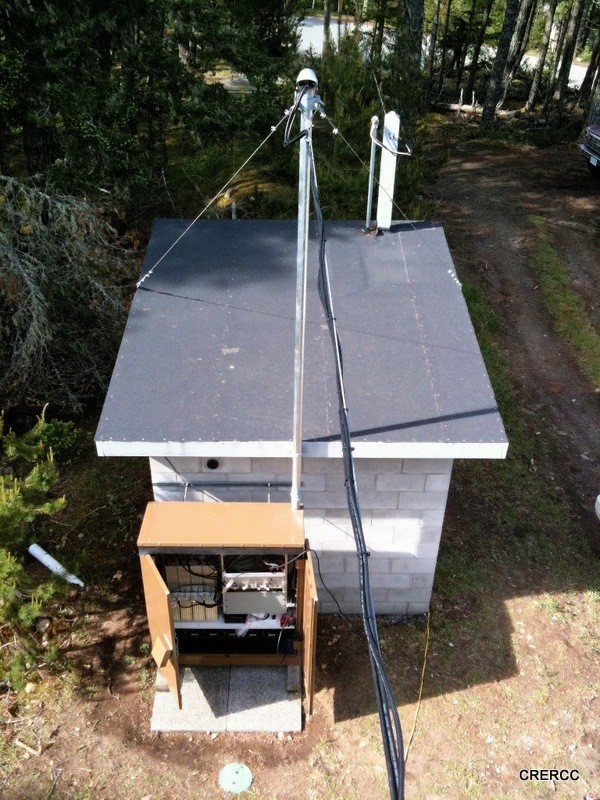

 Coax overhead on messenger cable to tower

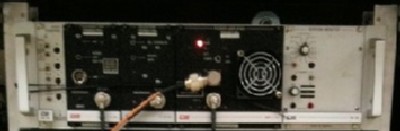

 145.430 Codan MT4E

440.125 Motorola CDM

144.970 Motorola CDM

Ch 26 Marine Codan MT3

Sinclair duplexer's





 Swiftsure Ch 26 marine - (black) Top

VHF & UHF  (silver) Middle

Battery disconnect Bottom Right

6 X 75 = 450 amp hours of back up.

In 2015 the VHF & UHF equipment was changed to Yaesu system Fusion
